Aruba JL676A 48G 4SFP+ CX 6100 Switch Series
Note:
Orders above 50 Omr will be fulfilled on 100% Advance Payment in Bank Account. Delivery time will be 3 to 5 working days. The remaining amount will be paid on Product Delivery.
Learn More
Description

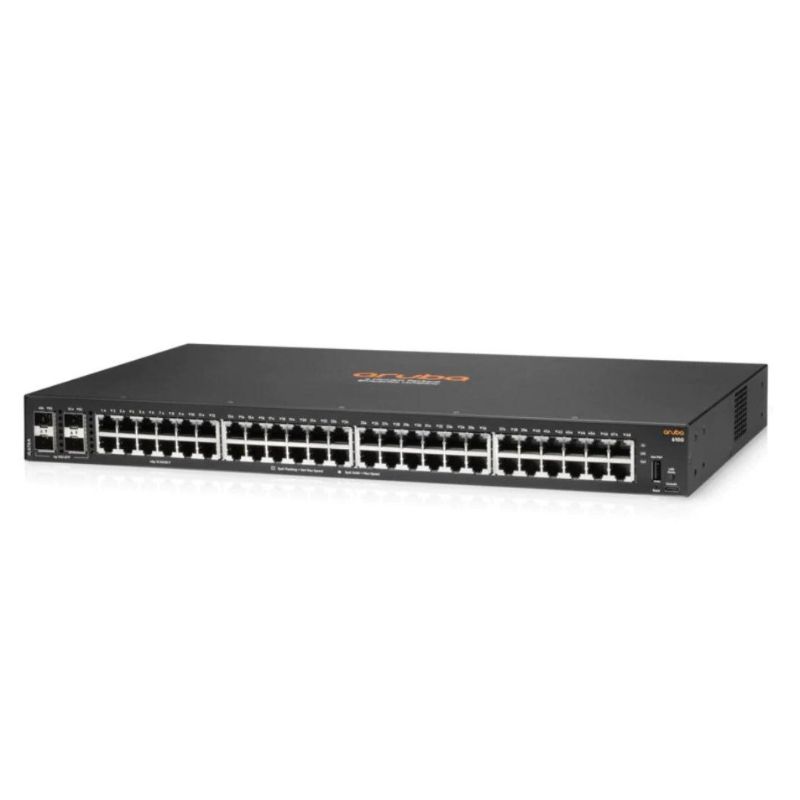

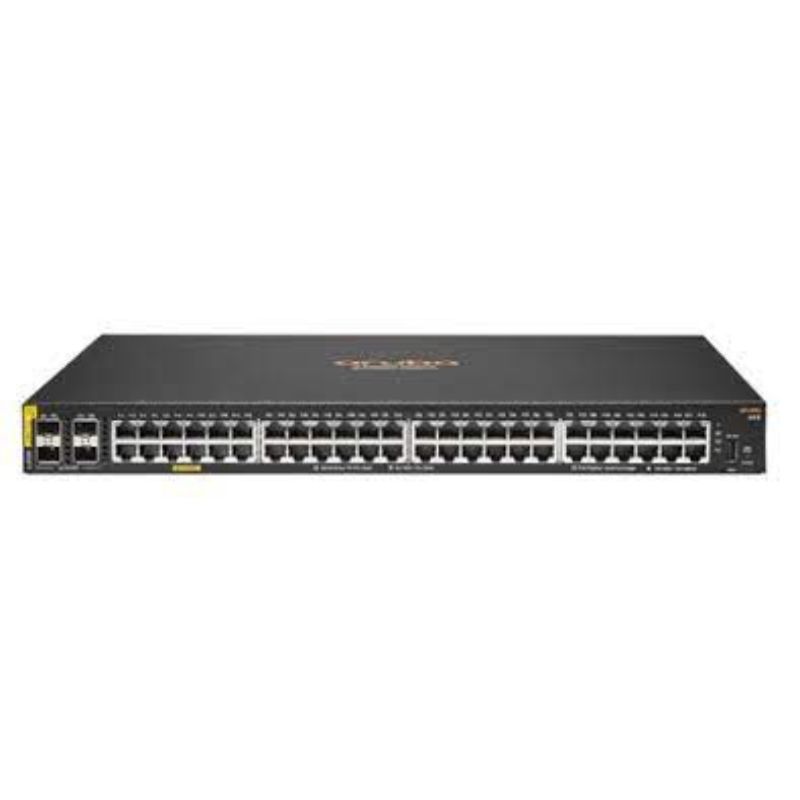

Aruba JL676A 48G 4SFP+ CX 6100 Switch Series
| CX6100 Series Specifications | ||||||
|---|---|---|---|---|---|---|
| Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A) | Aruba 6100 48G 4SFP+ Switch (JL676A) | Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | ||||
| Description | 48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port | 48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port | 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port | |||
| Power supplies | Fixed power supply (500W) Up to 370W of Class 4 PoE Power | Fixed power supply (65W) | Fixed power supply (500W) Up to 370W of Class 4 PoE Power | |||
| Fans | Fixed fans | Fixed fans | Fixed fans | |||
| Physical characteristics | ||||||
| Dimensions | (H) 4.39 cm (W) 44.2 cm (D) 30.48 cm (1.73” x 17.4” x 12.0”) | (H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73” x 17.4” x 9.74”) | (H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73” x 17.4” x 10.56”) | |||
| Configuration Weight | 5.02 kg (11.07 lbs) | 3.42 kg (7.54 lbs) | 4.19kg (9.24 lbs) | |||
| Additional Specifications | ||||||
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz | Dual Core ARM Cortex A9 @ 1016 Mhz | Dual Core ARM Cortex A9 @ 1016 Mhz | |||
| Memory and Flash | 4 GB DDR3 16 GB eMMC | 4 GB DDR3 16 GB eMMC | 4 GB DDR3 16 GB eMMC | |||
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) | 12.38MB (4.5MB Ingress/7.875MB Egress) | 12.38MB (4.5MB Ingress/7.875MB Egress) | |||
| Performance | ||||||
| Model Switching Capacity | 176 Gbps | 176 Gbps | 128 Gbps | |||
| Model Throughput Capacity | 98.6 Mpps | 98.6 Mpps | 95.2 Mpps | |||
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec | 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec | 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec | |||
| Switched Virtual Interfaces (dual stack) | 16 | 16 | 16 | |||
| IPv4 Host Table (ARP) | 1,024 | 1,024 | 1,024 | |||
| IPv6 Host Table (ND) | 512 | 512 | 512 | |||
| IPv4 Unicast Routes | 512 | 512 | 512 | |||
| IPv6 Unicast Routes | 512 | 512 | 512 | |||
| MAC Table Capacity | 8,192 | 8,192 | 8,192 | |||
| IGMP Groups | 512 | 512 | 512 | |||
| MLD Groups | 512 | 512 | 512 | |||
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 | 256 / 128 / 256 | 256 / 128 / 256 | |||
| Environment | ||||||
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) | |||
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing | 15% to 95% at 104°F (40°C) non-condensing | 15% to 95% at 104°F (40°C) non-condensing | |||
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) | |||
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing | 15% to 90% @ 149°F (65°C) non-condensing | 15% to 90% @ 149°F (65°C) non-condensing | |||
| Max Operating Altitude | 10000 feet (3 km) Max | 10000 feet (3 km) Max | 10000 feet (3 km) Max | |||
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max | 15000 feet (4.6 km) Max | 15000 feet (4.6 km) Max | |||
| Acoustic | Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB | Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander) = 24.6 dB | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 24.3 dB | |||
| Primary Airflow | Side-to-side | Side-to-side | Side-to-side | |||
| Electrical Characteristics | ||||||
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | |||
| AC Voltage | 100-127 VAC / 200-240 VAC | 100-127 VAC / 200-240 VAC | 100-127 VAC / 200-240 VAC | |||
| Current | 4.9 A / 2.4 A | 0.8 A / 0.5 A | 4.6 A / 2.3 A | |||
| Power Consumption (230 VAC) | Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W | Idle: 20.6W Max Power (w/o PoE): 44.2W | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W | |||
| Safety | ||||||
| EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition | EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition | EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition | ||||
| Emissions | ||||||
| FCC Class A VCCI Class A EN 55022/CISPR 22 Class A | FCC Class A VCCI Class A EN 55022/CISPR 22 Class A | FCC Class A VCCI Class A EN 55022/CISPR 22 Class A | ||||
| Lasers | ||||||
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) | EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) | EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) | ||||
| Immunity | ||||||
| Generic | EN 55024, CISPR 24 | EN 55024, CISPR 24 | EN 55024, CISPR 24 | |||
| EN | EN 55024, CISPR 24 | EN 55024, CISPR 24 | EN 55024, CISPR 24 | |||
| ESD | IEC 61000-4-2 | IEC 61000-4-2 | IEC 61000-4-2 | |||
| Radiated | IEC 61000-4-3 | IEC 61000-4-3 | IEC 61000-4-3 | |||
| EFT/Burst | IEC 61000-4-4 | IEC 61000-4-4 | IEC 61000-4-4 | |||
| Surge | IEC 61000-4-5 | IEC 61000-4-5 | IEC 61000-4-5 | |||
| Conducted | IEC 61000-4-6 | IEC 61000-4-6 | IEC 61000-4-6 | |||
| Power frequency magnetic field | IEC 61000-4-8 | IEC 61000-4-8 | IEC 61000-4-8 | |||
| Voltage dips and interruptions | IEC 61000-4-11 | IEC 61000-4-11 | IEC 61000-4-11 | |||
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | EN 61000-3-2, IEC 61000-3-2 | EN 61000-3-2, IEC 61000-3-2 | |||
| Flicker | EN 61000-3-3, IEC 61000-3-3 | EN 61000-3-3, IEC 61000-3-3 | EN 61000-3-3, IEC 61000-3-3 | |||
| Mounting and Enclosure | ||||||
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | ||||
