CX6100 Series Specifications
Aruba 6100 24G 4SFP+ Switch (JL678A)

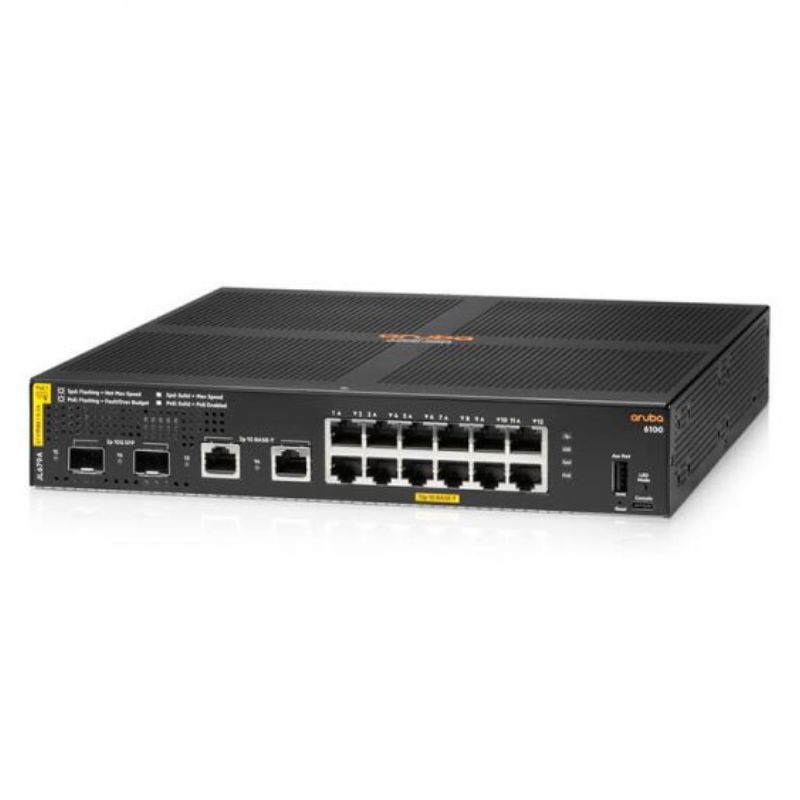

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Description
24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port
12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies
Fixed power supply (65W)
Fixed power supply (165W) Up to 139W of Class 4 PoE Power
Fans
Fixed fans
Fanless
Physical characteristics
Dimensions
(H) 4.39 cm
(W) 44.2 cm
(D) 20.12 cm
(1.73” x 17.4” x 7.92”)
(H) 4.39 cm
(W) 25.4 cm
(D) 25.5 cm
(1.73” x 10.0” x 10.04”)
Configuration Weight
2.62 kg (5.78 lbs)
2.78 kg (6.13 lbs)
Additional Specifications
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3 16 GB eMMC
4 GB DDR3 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB Egress)
12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity
128 Gbps
68 Gbps
Model Throughput Capacity
95.2 Mpps
45.1 Mpps
Average Latency (LIFO-64-bytes packets)
1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec
1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
Switched Virtual Interfaces (dual stack)
16
16
IPv4 Host Table (ARP)
1,024
1,024
IPv6 Host Table (ND)
512
512
IPv4 Unicast Routes
512
512
IPv6 Unicast Routes
512
512
MAC Table Capacity
8,192
8,192
IGMP Groups
512
512
MLD Groups
512
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
256 / 128 / 256
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 20.9 dB
Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow
Side-to-side
–
Electrical Characteristics
Frequency
50 / 60 Hz
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
100-127 VAC / 200-240 VAC
Current
0.6 A / 0.4 A
1.8 A / 0.9 A
Power Consumption (230 VAC)
Idle: 15.4W Max Power (w/o PoE): 33W
Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Safety
EN 60950-1/IEC 60950-1
EN 60825
CAN/CSA C22.2 No. 60950, 2nd Edition
UL 60950-1, 2nd Edition
EN 60950-1/IEC 60950-1
EN 60825
CAN/CSA C22.2 No. 60950, 2nd Edition
UL 60950-1, 2nd Edition
Emissions
FCC Class A
VCCI Class A
EN 55022/CISPR 22 Class A
FCC Class A
VCCI Class A
EN 55022/CISPR 22 Class A
Lasers
EN 60825-1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser
Klasse 1
(Applicable for accessories – Optical
Transceivers only)
EN 60825-1:2007 / IEC 60825-
1:2007 Class 1
Class 1 Laser Products / Laser
Klasse 1
(Applicable for accessories – Optical
Transceivers only)
Immunity
Generic
EN 55024, CISPR 24
EN 55024, CISPR 24
EN
EN 55024, CISPR 24
EN 55024, CISPR 24
ESD
IEC 61000-4-2
IEC 61000-4-2
Radiated
IEC 61000-4-3
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
IEC 61000-4-4
Surge
IEC 61000-4-5
IEC 61000-4-5
Conducted
IEC 61000-4-6
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
