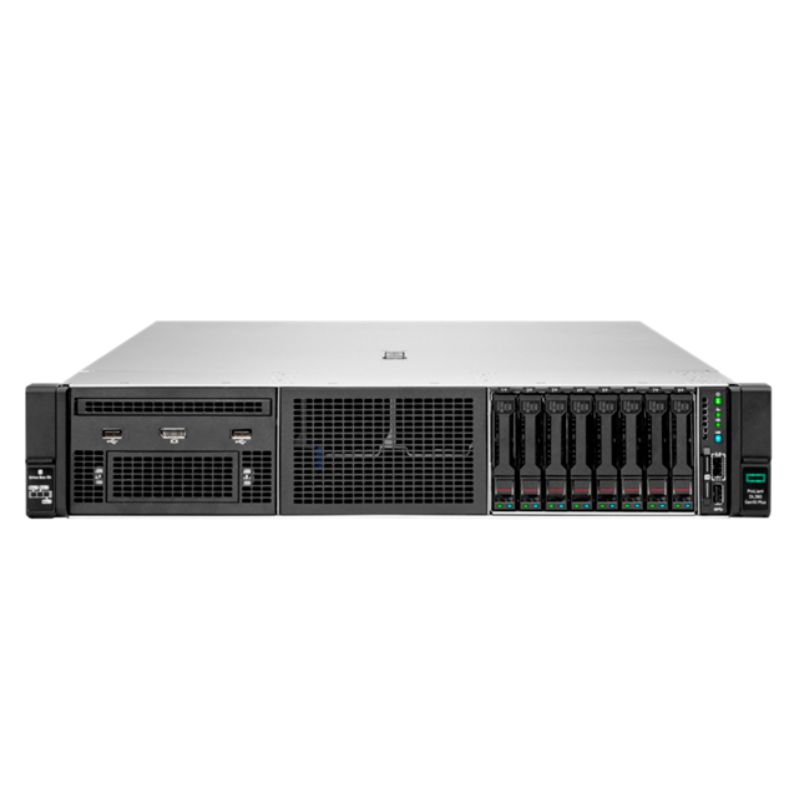

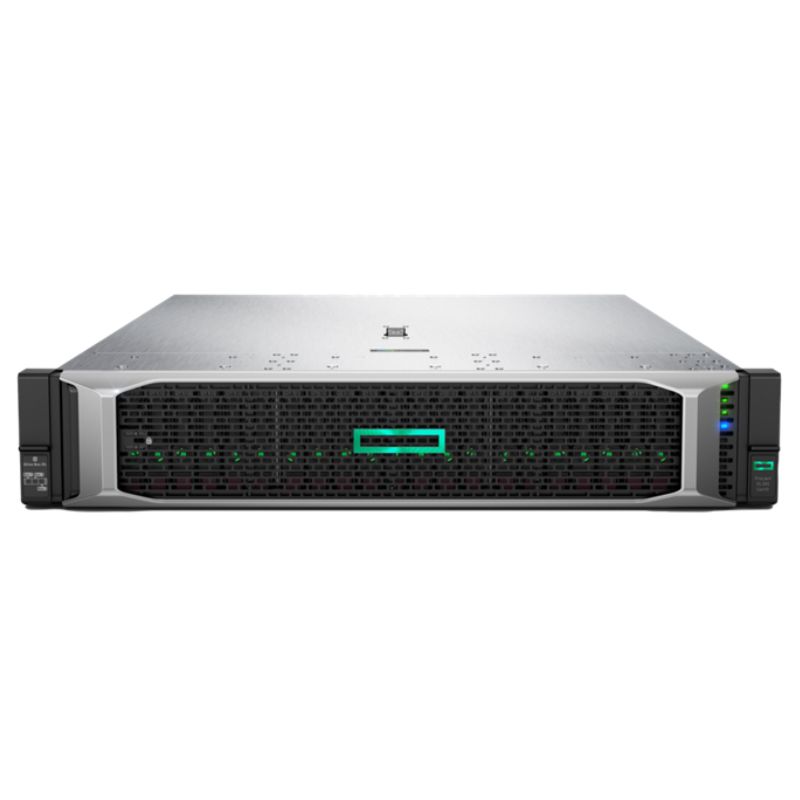

HPE ProLiant DL380 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server P55247-B21

Processor core available16 cores

Processor cache24 MB L3

Memory typeHPE DDR4 SmartMemory

Persistent Memory TypeIntel® Optane™ Persistent Memory for HPE

Persistent Memory Media Capacity128 GB – 512 GB

NVDIMM typeOptional – Intel® Optane™ Persistent Memory 200 Series for HPE

NVDIMM capacity128 GB – 512 GB

Infrastructure managementHPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)

System fan features4 Hot-plug redundant fans, performance

Power supply type1 HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply

Expansion Slots8, for detailed descriptions refer to the QuickSpecs

Network ControllerBroadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

Storage controllerBroadcom MegaRAID MR416i-p x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable

Warranty3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit http://www.hpe.com/support

Processor NameIntel® Xeon® Silver 4314 (16 Core, 2.4 GHz, 24 MB, 135W)

Processor number1

Processor speed2.4 GHz

Memory, standard32 GB (1 x 32 GB) RDIMM

Included hard drivesNone ship standard, 8 SFF drives supported

Optical drive typeOptional DVD-ROM Optional via Universal Media Bay External support only

SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form Factor2U

Weight63.43 lbs. maximum

Weight28.77 kg maximum

Minimum dimensions ( H x W x D)3.44 x 17.54 x 28 in

Minimum dimensions ( H x W x D)8.75 x 44.54 x 71. cm

Detailed product description HPE ProLiant DL380 Gen10 Plus server with one Intel® Xeon® Scalable 4314 processor, 1x 32 GB dual rank memory, Broadcom Mega RAID MR416i-p x16 Lanes 4 GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145 mm Cable, eight small form factor drive bays, four standard fans, one HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply, and a 3/3/3 warranty
