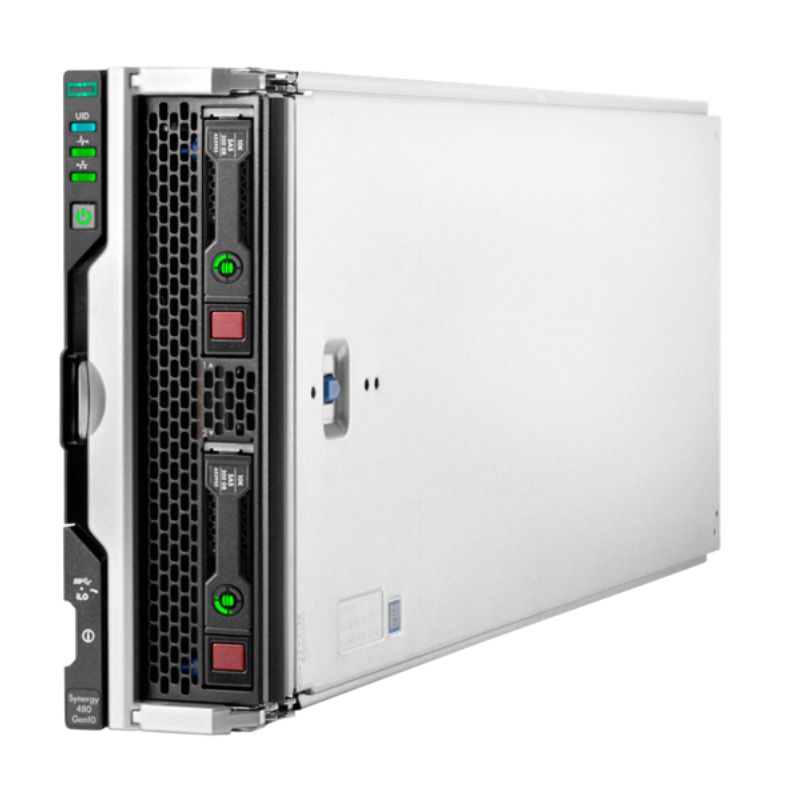

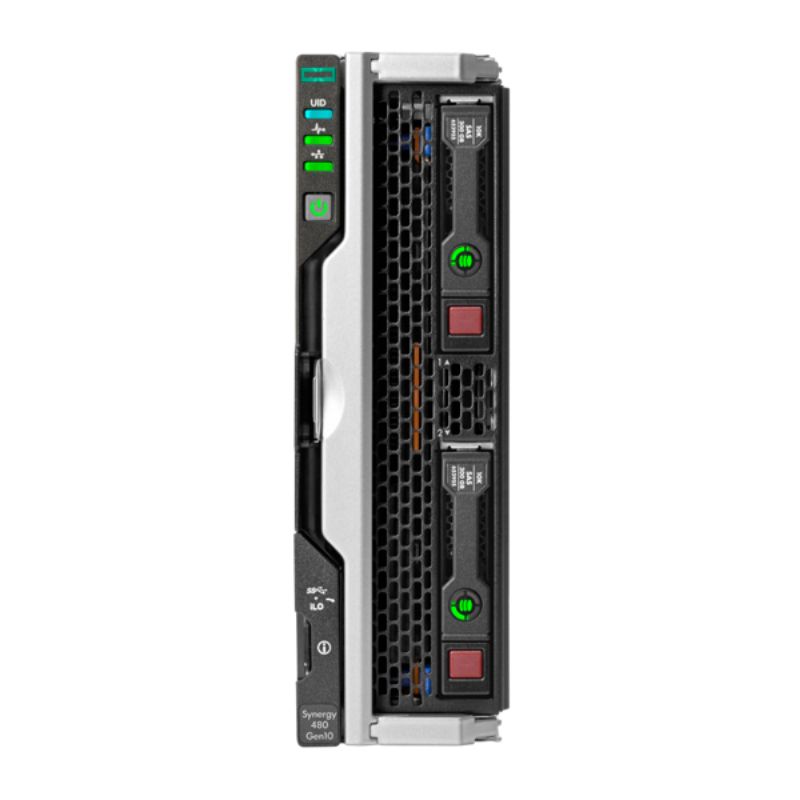

HPE Synergy 480 Gen10 Configure-to-order Compute Module 871940-B21
HPE Synergy 480 Gen10 Configure-to-order Compute Module 871940-B21
Compute nodes* CTO, Standard Backplane w/ 2 drive bays, 3 mezzanine slots * Processor is selectable Intel Xeon Scalable Family Gen 1 or Gen 2 * Memory is optional up to 1, 2, or 4.5TB depending on processors selected * Drives are optional depending on controller selected * Mezzanine cards are optional for customer need(networking or storage)
Processor NameIntel Xeon Scalable Family processor – Generation 1 or 2
Processor core available28 26 24 18 16 14 12 10 8 6 and 4 core solutions available
Processor speedUp to 3.8 GHz Frequency
Processor numberUp to 2 with Intel processor choice
Processor cacheUp to 38.5 MB
Memory typeChoice of HPE DDR4-2666 or 2933 SmartMemory available on select processors
Memory, standardOptional Memory: 2666 or 2933, based on Intel Gen1 or Gen2 processors
SecurityTPM and HPE Silicon Root of Trust
Drive description2 SFF SAS/SATA or, 2 SFF NVMe (optional) or, M.2 SATA or, 2 Dual uFF, hot-plug, depending on model.
Included hard drivesNone – Optional up to 2 SATA/SAS, uFF or M.2
Expansion Slots3 Mezzanine slots for multiple storage and networking solutions (details in QuickSpecs).
Infrastructure managementHPE Synergy Composer powered by HPE OneView and HPE iLO Advanced (standard) with all HPE Synergy solutions.
Power supply type6, frame-based
Form factor (fully configured)5U Compute/10U Frame
Warranty3/3/3 Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support.
Detailed product description* CTO, Standard Backplane w/ 2 drive bays, 3 mezzanine slots * Processor is selectable Intel Xeon Scalable Family Gen 1 or Gen 2 * Memory is optional up to 1, 2, or 4.5TB depending on processors selected * Drives are optional depending on controller selected * Mezzanine cards are optional for customer need(networking or storage)
WeightWeight: (approximate) 8.16 kg or 18 lb fully configured
WeightWeight: (approximate) 8.16 kg or 18 lb fully configured
Minimum dimensions ( H x W x D)Dimensions: (H x W x D) 6.35 x 21.4 x 60.0 cm or 2.5 x 8.43 x 23.62 in
Minimum dimensions ( H x W x D)Dimensions: (H x W x D) 6.35 x 21.4 x 60.0 cm or 2.5 x 8.43 x 23.62 in
