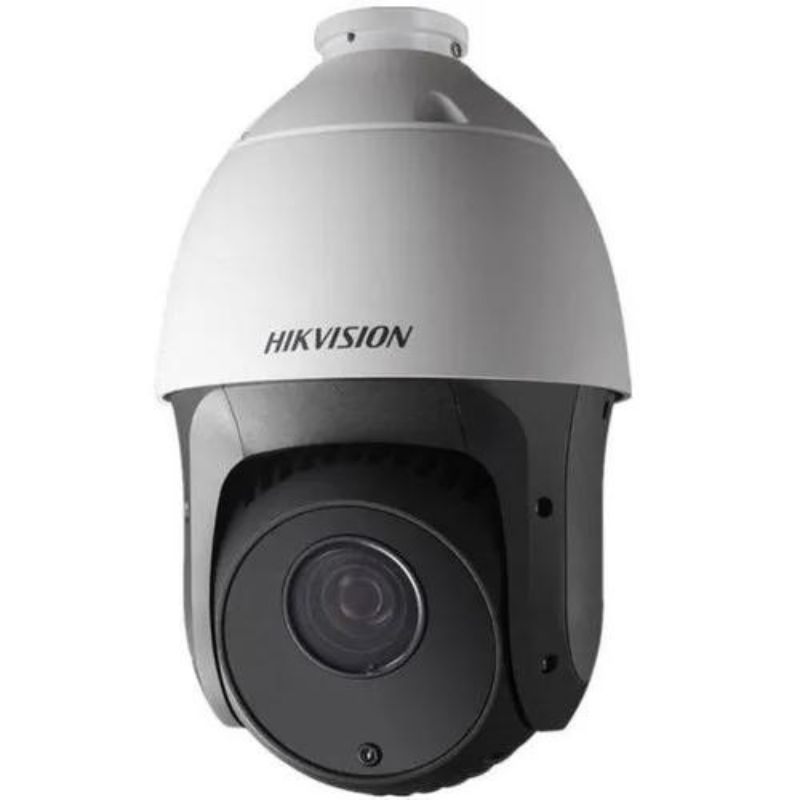

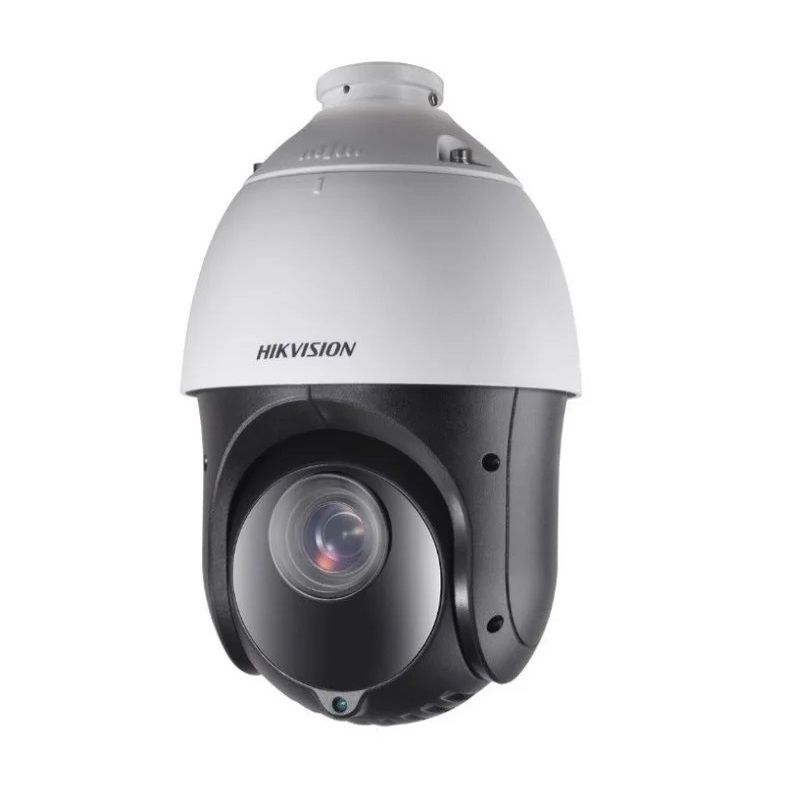

Hikvision DS-2AE4225TI-D (2mp PTZ 25x zoom with wall mount)

Hikvision DS-2AE4225TI-D (2mp PTZ 25x zoom with wall mount)

Camera
Model DS-2AE4225TI-D(E)
Image Sensor 1/2.8″ progressive scan CMOS
Max. Image Resolution 1920 × 1080
Frame Rate
50Hz: 25fps @(1920 × 1080)
60Hz: 30fps @(1920 × 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16×
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Regional Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 5 mm to 75 mm, 15× Optical
Aperture Range F 1.6 to F 3.5
Horizontal Field of View 53.8° to 4.0° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Infrared
IR Distance Up to 100 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power 12 VDC
Max.20 W (IR:7 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient
protection
Mounting Various mounting modes optional
Dimension Ø 164.5 mm × 295 mm (Ø 6.47″ × 11.61″)
Weight (approx.) 2Kg (4.41Ib.)
