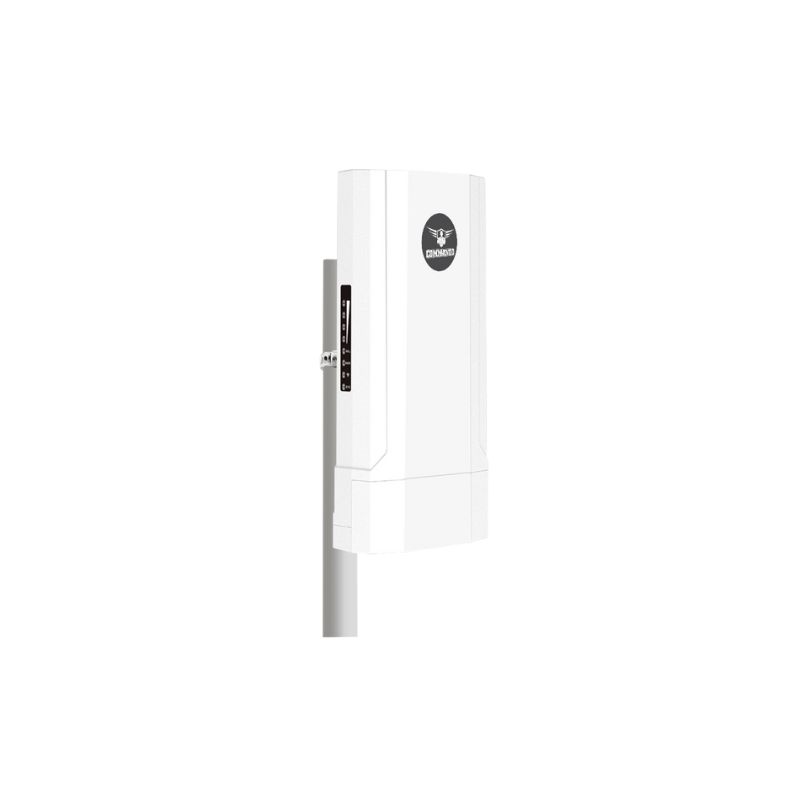

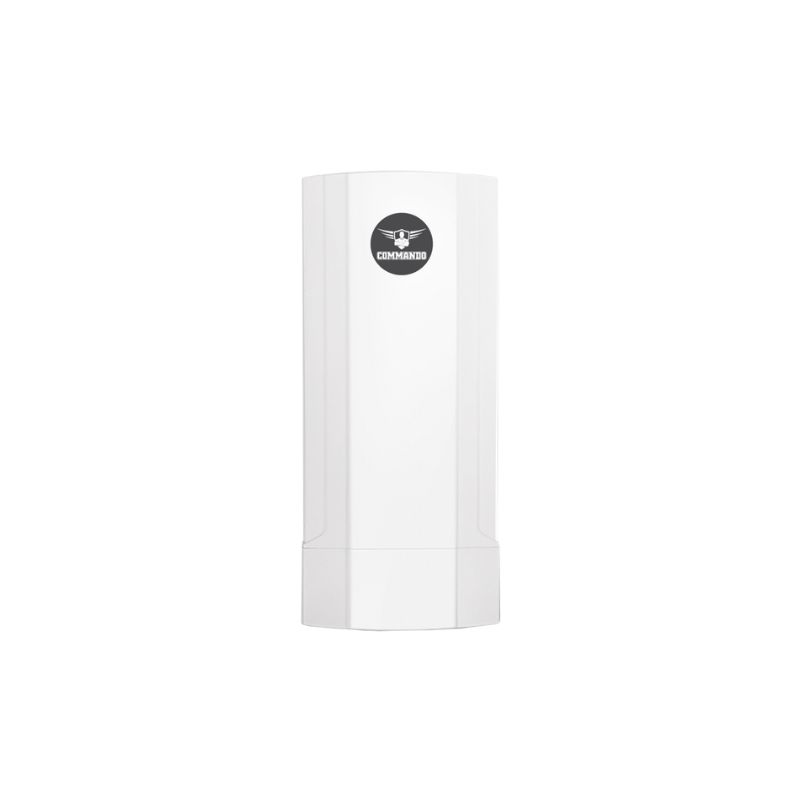

Commando AIR-APO1200 Outdoor Access Point
| Brand | COMMANDO |
|---|---|
| Warranty | 6-Month Warranty |
AIR-APO1200
COMMANDO Air ONE 1200 Mbps, 2.4GHz+5GHz 802.11ac, Multi-Mode, Outdoor Access Point
- Multiple Operational Modes like Gateway, Repeater, WISP, AP. All COMMANDO AirONE series Outdoor APO default mode is AP mode.• Supports Multi SSID up to 8 with inbuilt WIFI channel analysis.• Supports IEEE 802.11ac/b/g/n, 2.4GHz+5.8GHz Wave 2.0 Technology, MIMO High Gain Omni 5dBi Internal Antenna with RF input Power up to 500mW.• Support wireless RF power adjustable as per user movements from APO.• Wireless clients up to 128 max, with concurrent end users up to 100.• Support tag VLAN and VLAN management.• Supports intelligent load balance based on users.• Support seamless roaming and low-rate terminal access.• Dual purposes WAN or IEEE 802.3at 48V PoE+ supporting 1x 10/100/100Mbps and separate LAN ports 1x 10/100/1000Mbps.• Supports Wi-Fi client distance around 120 meters radius depending on surrounding conditions.• Dual input for power either IEEE 802.3at 48V POE+ or 12V, 1.5A DC power inputs.• Support Open or encryption like WPA/WPA2PSK_TKIPAES• Plug and Play design with self-adaption with Zero Touch Provisioning.• Compact IP65 casing, silent design perfect for noise sensitive environments.• Affordable, Easy-to-Use AP for Small Business Networks, with Zero Configuration Required.• Built-in High-Performance Processor with long life, Suitable for Deployment of Large Scale Commercial Scenarios• Comes with one-year default warranty – optionally extendable up to 3 years.
SOFTWARE HIGHLIGHTS
Home
Device Information like CPU Usage, Memory Usage, LAN Information like IP Mode Get IP From AC/Gateway/Static, Status with 2G/5G Wi-Fi Clients Status with information like SSID, Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ Fat AP Mode with Uptime, Flow in bps for Downstream and Upstream.
Wizard
Gateway Mode, Repeater Mode, WISP Mode, AP Mode (Default Selection).
Wi-Fi
2G/5G Wi-Fi Status ON/OFF, SSID, Hide your SSID, Bandwidth, Channel, Encryption Open/Encryption with WPA/WPA2PSK_TKIPAES, MAC ACL with Add, Delete, Apply with disable/Allow/ Prohibit option, Wi-Fi Timer Off/ON with Time Frame, Advanced setting like Country Region, 2G/5G, Multicast Fast, Maximum client for APO, WLAN Partition, Short GI, Coverage Threshold(-95dBm~-65dBm), TX Power, DFS.
Network
LAN Settings with DHCP server option, Static DHCP, VLAN Settings & Cloud Server Settings.
Security
URL Filter, IP Filter, MAC Filter & DMZ Settings.
Manage
Configure, Reboot, Modify Password, Upgrade, Time, Log, Flow Control, IP Group, Time Group & DDNS Settings.
