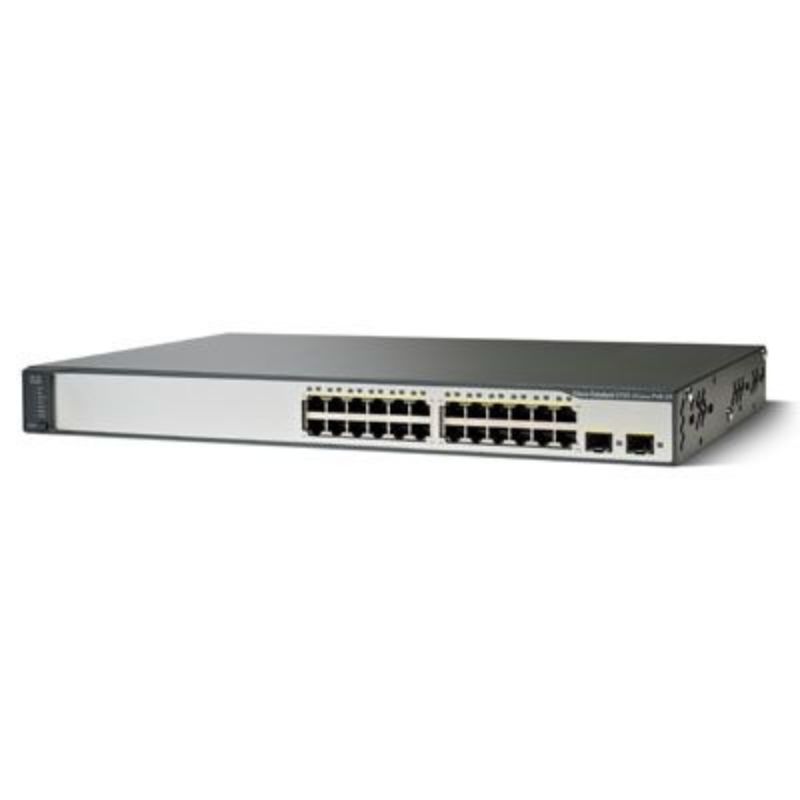

Cisco WS-C3750V2-24PS-S Switch
| Brand | Cisco |
|---|---|
| Warranty | 6-Month Warranty |
Cisco WS-C3750V2-24PS-S Switch
| Manufacturer Part Number | WS-C3750V2-24PS-S |
| Product Type | Switch – 24 ports – L3 – Managed |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density – Uplinks | 24 x 10/100 + 2 x SFP |
| Power Over Ethernet (PoE) | Yes |
| MAC Address Table Size | 12K entries |
| Routing Protocol | OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB Flash |
| Connectivity / Expansion Slots | |
|---|---|
| Interfaces | 24 x 10Base-T/100Base-TX – RJ-45 1 x console – RJ-45 – management 2 x SFP (mini-GBIC) |
| Power Supply Specifications | |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.3 cm |
| Depth | 29.5 cm |
| Height | 4.4 cm |
| Weight | 4.6 kg |
| MTBF | 275,360 hour(s) |
| Compliant Standards | CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| System Software | |
| Software Included | Cisco IOS IP Base software features |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty – lifetime |
24 Ethernet 10/100 ports with Power over Ethernet (PoE) and 2 SFP Gigabit Ethernet ports; 1 RU
Lower power consumption than its predecessors
Backward compatible with Cisco Catalyst 3750 and 3750-E Series Switches
Open Shortest path First (OSPF) routing with IP Base feature set
Compatible with Cisco Redundant Power System (RPS) 2300
Uniform depth of 11.9 inches on all units for better cable management
IPv6 routing included in the IP Services feature set
EnergyWise support to monitor energy consumption of network infrastructure and implement energy saving programs to reduce energy costs
Cisco Catalyst 3750V2-24PS Layer 3 Switch is next-generation energy-efficient Layer 3 Fast Ethernet stackable switch. This new switch supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprints. The Cisco Catalyst 3750V2-24PS consumes less power than its predecessors and is the ideal access layer for enterprise, retail, and branch-office environments, as it increases productivity and investment protection by enabling a unified network for data, voice, and video.
