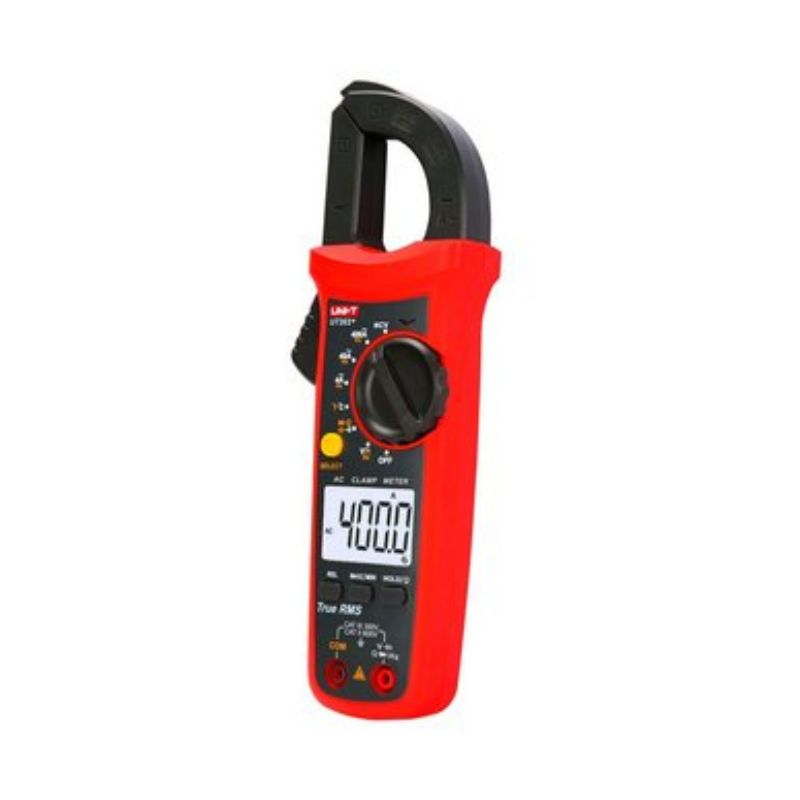

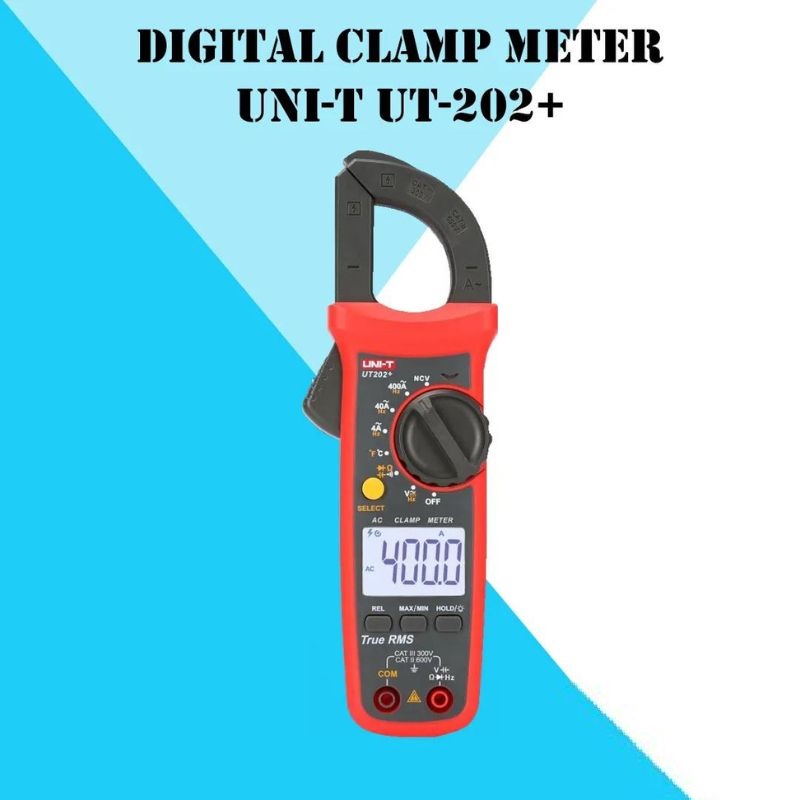

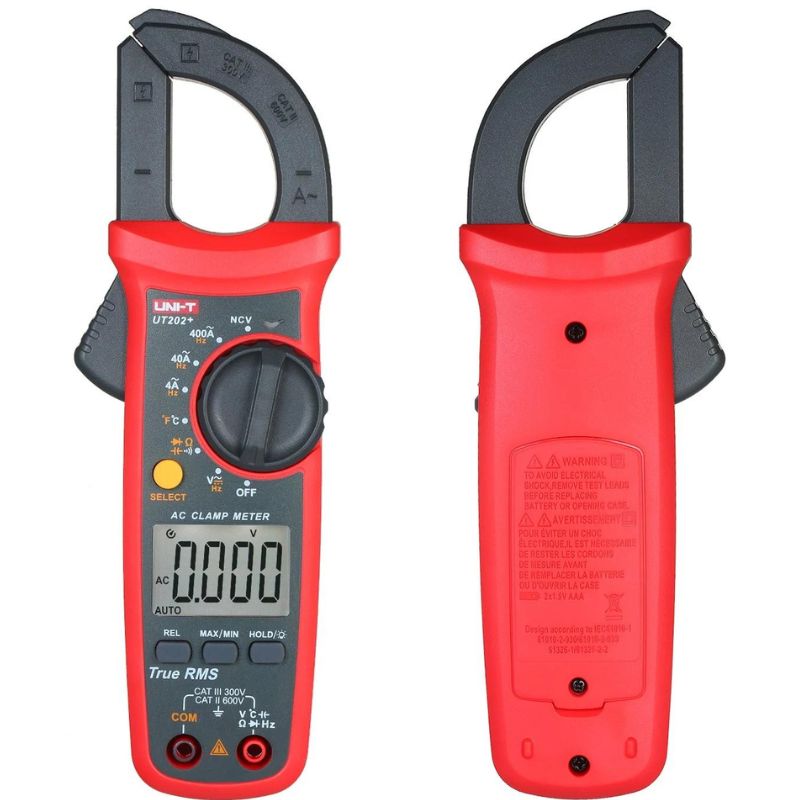

Uni-T Digital Clamp Meter UT 202+

Uni-T Digital Clamp Meter UT 202+

• UNI-T-UNI-T UT202+ 4000 Counts Digital Clamp Meter True RMS Multimeter Clamp Ammeter Voltage Meter NCV Test Universal Meter Tester AC Current Clamp Tester -40~1000℃ Temperature Measurement Relative Value

• Specifications:
  Material: ABS
  Safety Rating: CAT II 600V, CAT III 300V
  Display Count: Max. 4000
  Jaw Opening: 28mm
  Auto off: 15 minutes
  Range: Auto
  AC Current Range: 4.000A/40.00A/400.0A
  AC Current Resolution: 0.001A/0.01A/0.1A
  AC Current Frequency: 50Hz~100Hz
  AC Current Frequency Resolution: 0.1Hz
  AC Voltage Range: 4.000V/40.00V/400.0V/600V
  AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
  AC Voltage Frequency: 10Hz~10kHz
  AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
  DC Voltage Range: 400.0mV/4.000V/40.00V/400.0V/600V
  DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
  Resistance Range: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
  Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
  Capacitance Range: 4.000nF/40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF
  Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF
  Temperature Range: -40~40℃/40~500℃/500~1000℃ (-40~104℉/104~932℉/932~1832℉)
  Temperature Resolution: 1℃(1℉)
  Continuity Range: 400.0Ω
  Continuity Resolution: 0.1Ω
  Diode Range: 4.000V
  Diode Resolution: 0.001V
  Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH)
  Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
  Altitude: 2,000 meters
  Power Supply: 2 * 1.5V AAA battery (NOT included)
  Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
  Item Weight: 296g / 10.44oz
  Package Weight: 386g / 13.62oz
  Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in

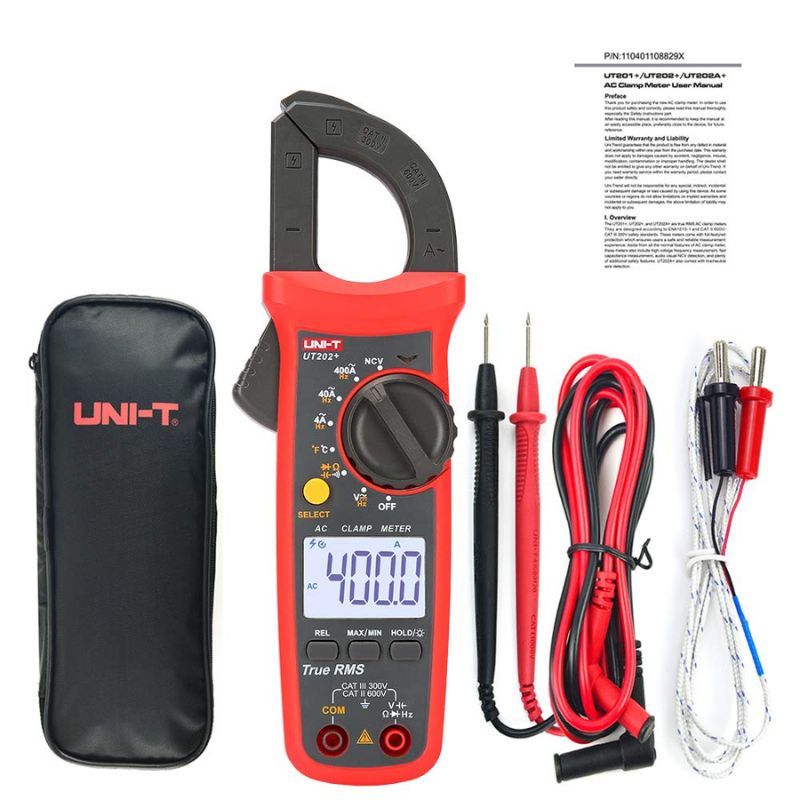

  Package List:
  1 * Clamp Meter
  2 * Test Lead
  1 * Temperature Probe
  1 * Storage Bag

• Manual English
