Ubiquiti LBE-5AC-GEN2 Ultra-Lightweight Design

Ubiquiti LBE-5AC-GEN2 Ultra-Lightweight Design

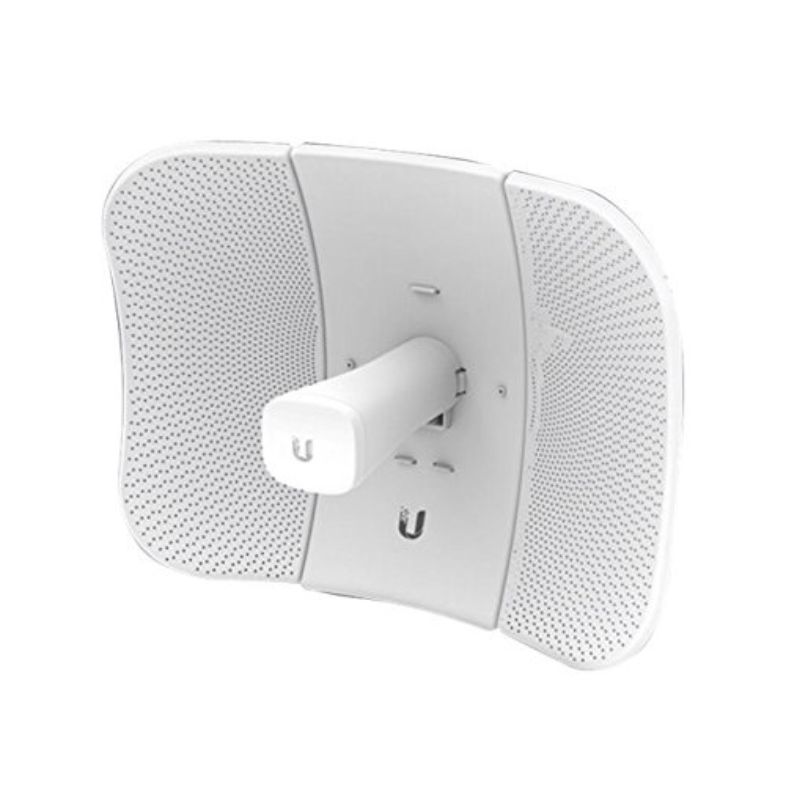

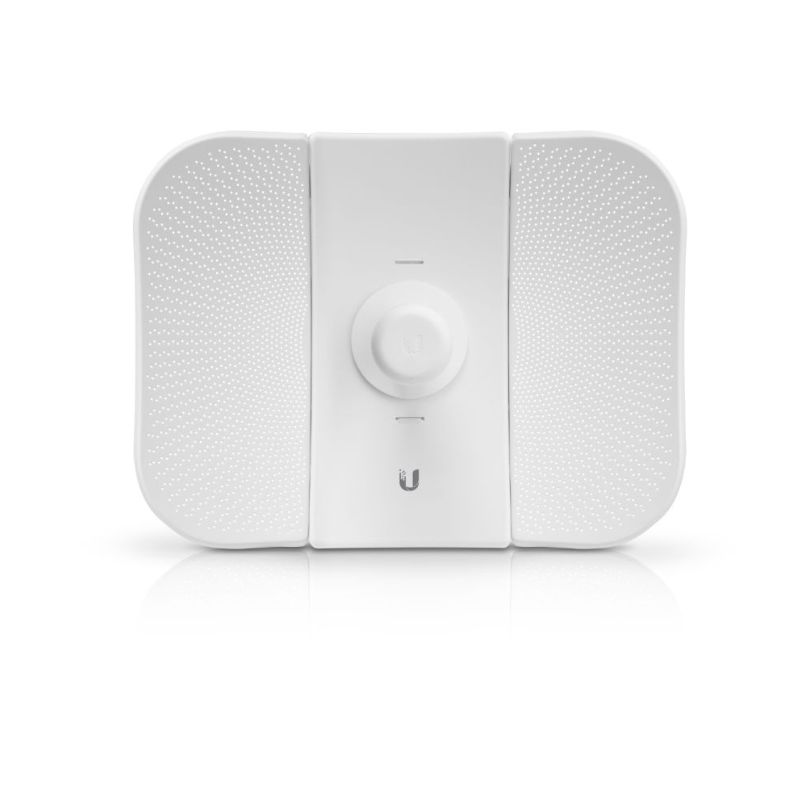

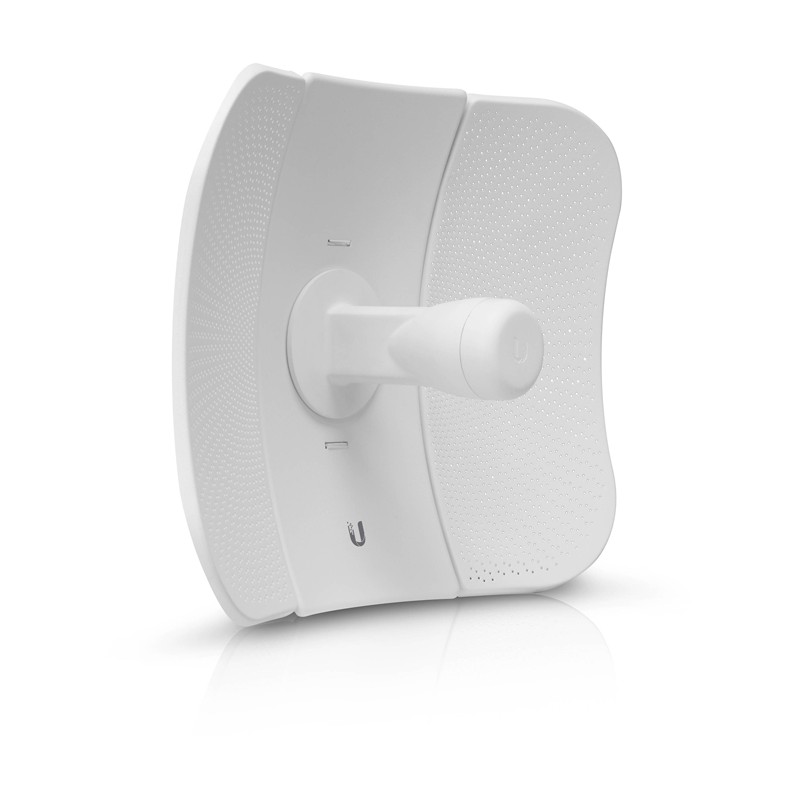

• LiteBeam 5AC-Gen2 is a 2×2 MIMO client station of the AC series for the 5GHz band with an antenna gain of 23dBi, which reaches a transmission speed of up to 867Mb/s. The unit is only compatible with other airMAX AC products and is designed for outdoor use with the best price/performance ratio in the 5GHz band.
• Inside the LiteBeam there is a powerful MIPS processor Atheros 74KC, which is supported by 64MB of operating memory.
• The network port supports 10/100/1000 Ethernet and the unit can be powered via the passive Gigabit PoE24V/0.3A adapter included in the package (active PoE according to 802.3af is not supported).

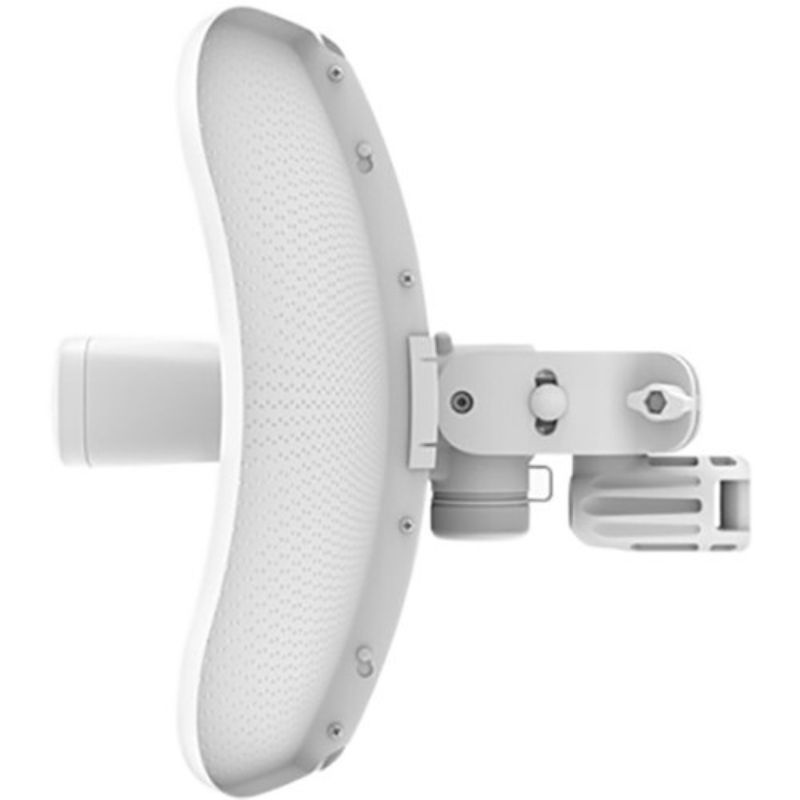

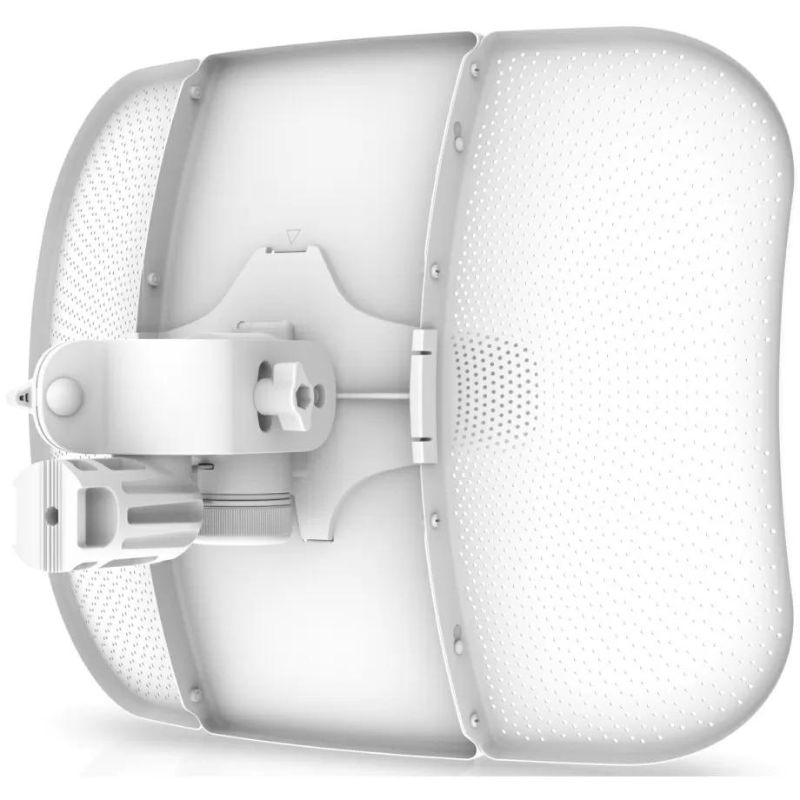

• LiteBeam 5AC-Gen2 combines proprietary hardware and software technologies into a cost-effective device. Advantages include InnerFeed technology, airMAX TDMA protocol, improved holder and built-in spirit level allowing very fast and correct deployment, as well as very compact dimensions to save costs during transportation.
• Management via the uMobile application
• Technicians will certainly appreciate the newly included 2.4GHz WiFi interface, which is used for administration via a mobile device.
• The UMOBILE app is available for both Android and iOS.
• The new operating system airOS 8 is also new for all Gen2 products with the airMAX ac protocol.
• This system plots the constellation diagram and SNR value in real time.

Package contents

• device
• antenna
• antenna holder
• PoE power supply 24V/0.3A
• power cable
• metal drawstring

Technical parameters

Wireless features
Sensitivity [dBm]: -96
Frequency range [MHz]: 5150-5875
Wireless frequency: 5GHz
WiFi standards: airMAX ac
WiFi transmission speed – 5GHz [Mb/s]: 866
5GHz transmit power [dBm]: 25
Encryption: WPA2 AES
5GHz OUT: 2×2
Antenna type: Built-in
Number of built-in antennas: 2
Antenna gain [dBi]: 23

Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 70
Weight [g]: 980
Depth [mm]: 272
Width [mm]: 358
Height [mm]: 272

Hardware
RAM [MB]: 64
CPU: MIPS 74KC
CPU frequency [MHz]: 650

Connectors and interfaces
LAN Speeds: (1) 10/100/1000Mbps
Gigabit LAN: Yes

Others: WiFi management radio

Power supply
Power supply via PoE: 24V DC
PoE types: PoE-In (only)
Max. power consumption [W]: 7

Software
Operating mode: Client, AP Router, Access Point, Client Router (wisp)
IPv6 support: Transparent (bridge mode)
Default IP address: 192.168.1.20
Default username and password: Ubiquiti/Ubiquiti
